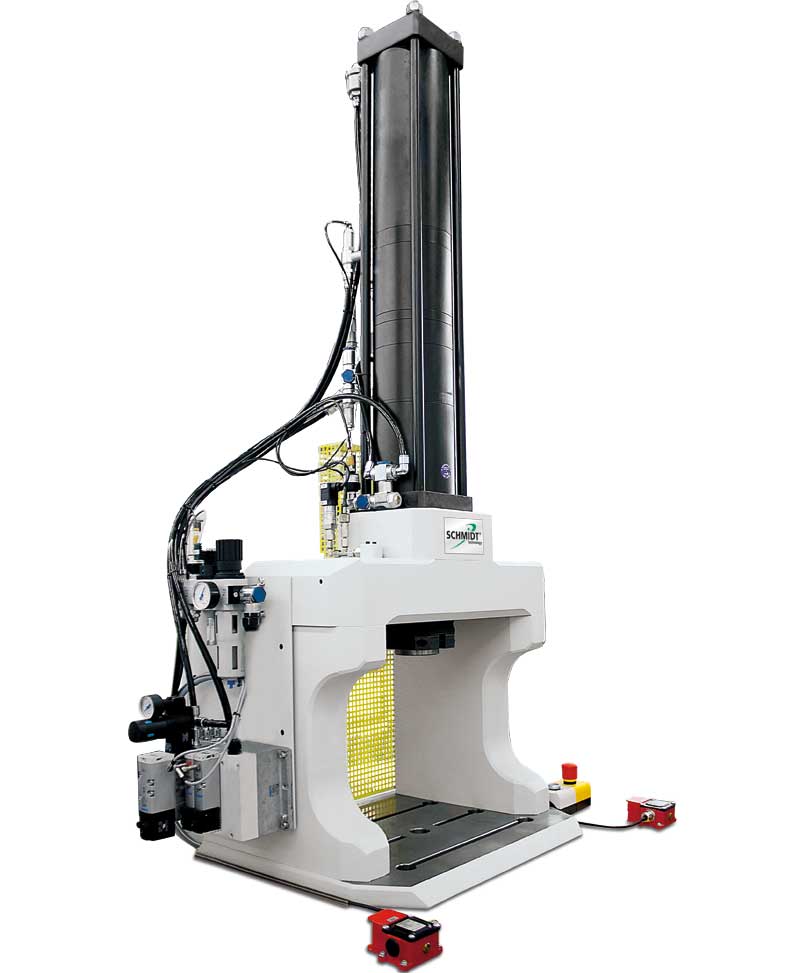

SCHMIDT® HydroPneumaticPress H-Frame design

SCHMIDT^® HydroPneumaticPress

H-frame design with and without force / stroke monitoring.

Maximum press force from 100 kN to 220 kN.

In combination with the SCHMIDT^® PressControl 75 or 700 controller, the presses become EC type-tested, CE-compliant workstations, optionally with process monitoring.

Features

Stable frame with low bending for the absorption of high forces
Flexible tool location in the fixture mounting plate due to replaceable centering bushing with precision bore
The large working area offers sufficient space for large tools
The force is determined via a pressure transducer with force /stroke monitored presses

Technical Data

Press Type			74		76
Total stroke - power stroke¹⁾		mm	100 – 12	150 – 22	100 – 12	150 – 20
Nominal force at 6 bar		kN	100	100	220	220
Ram bore	G	ø mm	25^H7	25^H7	32^H7	32^H7
External ram dimensions		ø mm	90	90	90	90
Working height²⁾	F	mm	350	350	350	350
Press head height	SH	mm	919	1181	1157	1400
Frame hight	K	mm	78	78	78	78
H-frame height	M	mm	692	692	692	692
Floor space required	B x T	mm	630 x 440	630 x 440	630 x 440	630 x 440
Table size	B1 x T1	mm	370 x 300	370 x 300	370 x 300	370 x 300
Table bore	D	ø mm	40^H7	40^H7	40^H7	40^H7
Clearance	C	mm	490	490	490	490
Clearance latéral	I	mm	220	220	220	220
Weight (standard)		approx. kg	550	605	610	665

Press Type			374		376
Total stroke - power stroke¹⁾		mm	100 – 12	150 – 22	100 – 12	150 – 20
Nominal force at 6 bar		kN	100	100	220	220
Process data acquisition – stroke – force		µm/inc N/inc	5 32	5 32	5 62,5	5 62,5
Ram bore	G	ø mm	25^H7	25^H7	32^H7	32^H7
External ram dimensions		ø mm	90	90	90	90
Working height²⁾	F	mm	350	350	350	350
Press head height	SH	mm	919	1181	1157	1400
Frame hight	K	mm	78	78	78	78
H-frame height	M	mm	692	692	692	692
Floor space required	B x T	mm	630 x 440	630 x 440	630 x 440	630 x 440
Table size	B1 x T1	mm	370 x 300	370 x 300	370 x 300	370 x 300
Table bore	D	ø mm	40^H7	40^H7	40^H7	40^H7
Clearance	C	mm	490	490	490	490
Clearance side	I	mm	220	220	220	220
Weight (standard)		approx. kg	550	605	610	665
